While working as a consultant, I had an opportunity to serve as an Interim Head of Enterprise Architecture for one of the banks in the Middle East. The objective was to set up an Enterprise Architecture function at the company and demonstrate its benefits. It was a rare chance to build a capability from the ground up and I wanted to share some of my learnings in this blog. I hope this will help people looking for their next opportunity.
Tag Archives: Security Architecture
Supporting the NHS
I had a privilege to engage with NHS Digital as an external consultant in a technical architect capacity to help enhance their cyber security capabilities. NHS Digital continues to play an important role in the current pandemic in the UK and it was an honour to be able to contribute to the security of their operations.
Business alignment framework for security
In my previous blogs on the role of the CISO, CISO’s first 100 days and developing security strategy and architecture, I described some of the points a security leader should consider initially while formulating an approach to supporting an organisation. I wanted to build on this and summarise some of the business parameters in a high-level framework that can be used as a guide to learn about the company in order to tailor a security strategy accordingly.
This framework can also be used as a due diligence cheat sheet while deciding on or prioritising potential opportunities – feel free to adapt it to your needs.
Modelling SABSA architecture using ArchiMate
ArchiMate modelling language is one of the The Open Group enterprise architecture standards. It is aligned with TOGAF and aims to help architects (and other interested parties) understand the impact of design choices and changes.
I provide a high-level overview of this standard and the free open-source modelling tool used to describe, analyse and visualise architecture in my previous blog.
Here I would like to build on the foundation we’ve laid while discussing SABSA architecture and design case study and share and example of using the Archi tool to model security architecture using the SABSA framework.
Let’s say ACME Corp asked us to help them with their security architecture. Where do we start?
As described in my previous blog, let’s establish Contextual Architecture.
Using Archi, I select Principles (can be found in Motivation section) for attributes and define composition relationship between elements (e.g. ACME Corp is composed of Cost-effective, Reputable and many other attributes that hopefully define the business).
Here and below I’ll be using a simplified example just to illustrate a point – you will have many more attributes in practice.

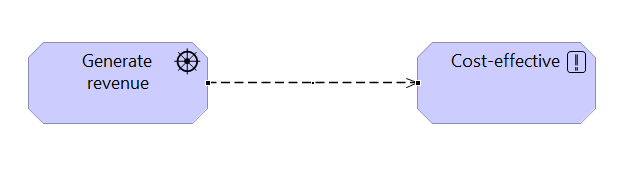

From reading company annual reports and talking to business stakeholders we can start identifying business drivers of ACME Corp. We can them map these business drivers to attributes. Below is an illustration of mapping a business driver Generate revenue (Driver element) to the attribute Cost-effective using Influence relation, as business drivers influence attributes.

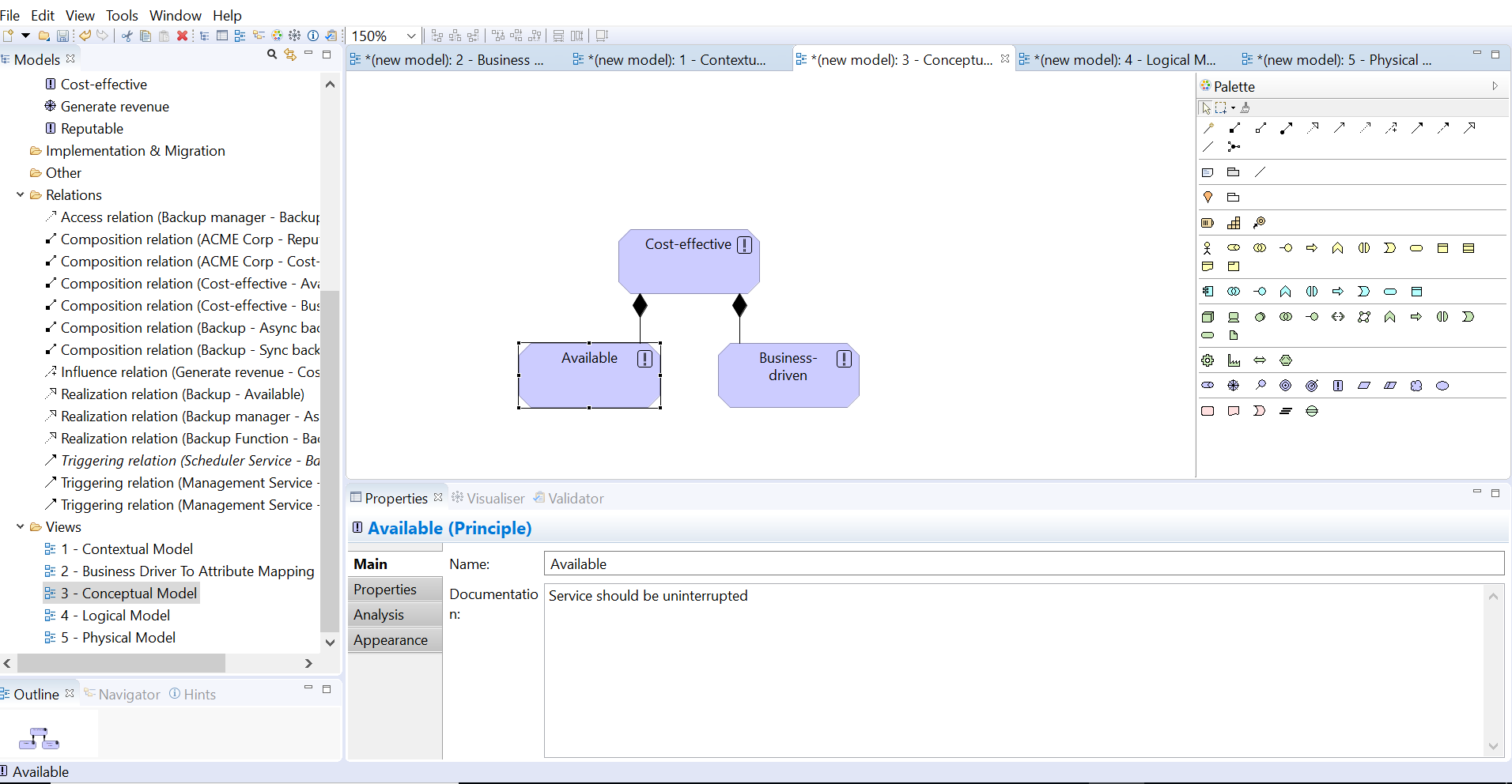

On the Conceptual architecture level we need to start defining lower level attributes. For example, Cost-effective is composed (Composition relation) of Available and Business-driven
Remember that you can provide definitions of your attributes in the element’s properties (Main section). In this example I’m defining Available as Service should be uninterrupted. You are also encouraged to establish a measurement approach for each attribute. You can see above that Uptime is the main KPI for availability. It’s a hard measure where we monitor the percentage of time system is available compared to what is specified in the SLA.

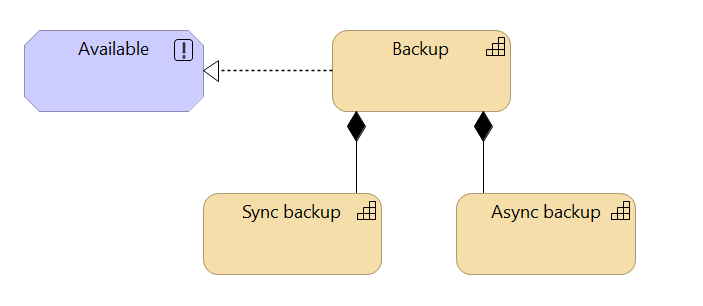

Logical level provides an insight into what capabilities enable the attributes. In the example below, Available is realised (Realisation relation) by Backup capability which in turn is comprised of Synchronous and Asynchronous backup capabilities (Composition relation).
Archi tool allows us to model SABSA Physical Architecture view by describing services, events, processes, interfaces, functions and other elements of the TOGAF Technology layer.

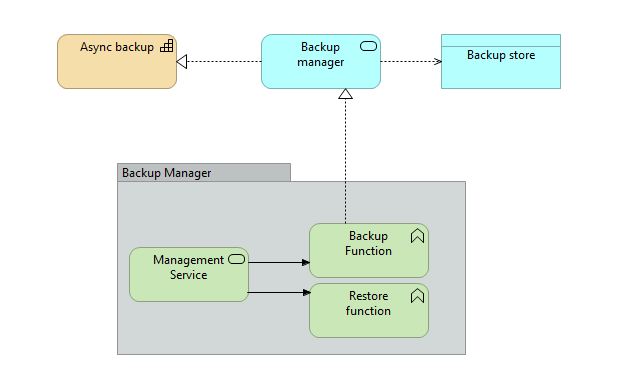

Below is a simplified example of describing the Asynchronous backup capability.
Asynchronous backup is being realised by Backup manager application service (realisation relation). Backup store is a data object that is being accessed by the Backup manager (access relation).
You can be quite detailed here and that’s where Archi tool can add a lot of value. But to keep things simple, I’m going to leave it at that. You can decompose elements into services and function, group them together and even go lower describing actual technology solutions on SABSA Component architecture level.
The real question is: what do you do with all of this?
My answer is simple: visualise.

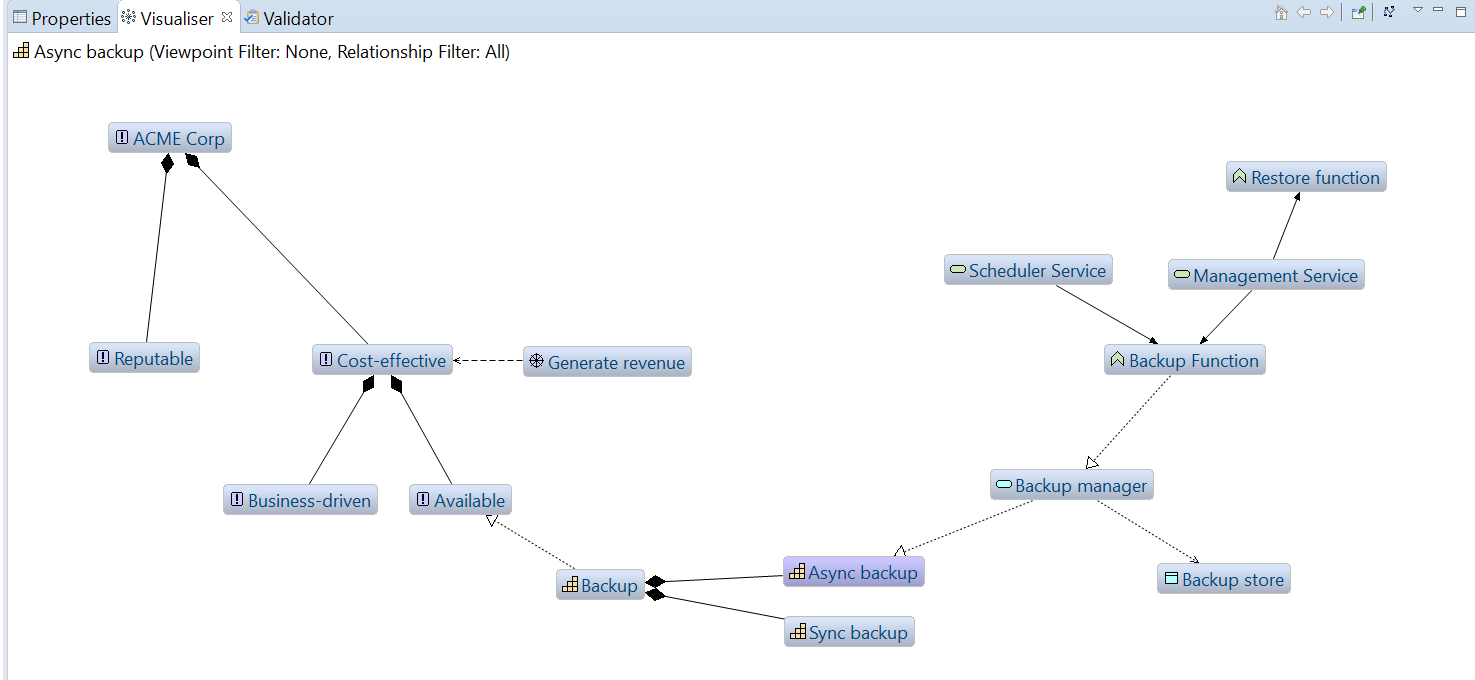

Archi lets you switch into the Visualiser mode and create graphs bringing all your hard work together. Playing with depth (6 in the example above) you can analyse the architecture and ensure traceability: you can see and, more importantly, demonstrate to your business stakeholders how a particular technology solution contributes to the overall business objective.
In addition, the Validator allows you to see the elements that are orphaned, i.e. not related to any other element. You then have the ability to rectify this and introduce a relationship or discontinue the capability (otherwise, why are you paying for something that is not in use?).
If you followed the steps above, the tool, despite being free, actually does a lot of the heavy lifting for you and automatically adjusts the models and graphs if changes to the architecture are introduced.
Now it’s your turn to try out Archi for SABSA architecture. Good luck!
I would like to thank Chul Choi for outlining the above technique.
An open source modelling toolkit for enterprise architects
Telling stories is one of the best ways to get your ideas across, especially when your audience is not technical. Therefore, as an architect, you might want to communicate in a way that can be easily understood by others.
TOGAF, for example, encourages enterprise architects to develop Business Scenarios. But what if you want to represent your concepts visually? The solution might lie in using a modelling language that meets this requirement.
ArchiMate is an open standard for such a language that supports enterprise architects in the documenting and analysing of architecture. Full alignment with aforementioned TOGAF is an added bonus.
The ArchiMate mimics constructs of the English language i.e. it has a subject, an object and a verb that refer to active, passive and behavior (action) aspects respectively. It employs these constructs to model business architecture.
To illustrate this, let’s model a specific business process using ArchiMate. Similarly to the example described in one of the whitepapers, let’s consider a stock trader registering an order on the exchange as part of the overall Place Order process.
Thinking back to the English language parallel, what does this sentence tell us? In other words, who is doing what to what?
In this scenario, a Trader (subject) places (verb) the order (object).

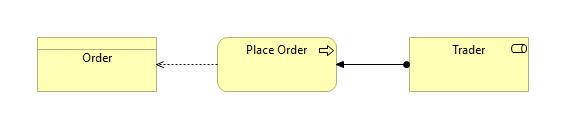

The diagram below illustrates how this might look like when modelled in ArchiMate.
‘Trader’, being an active element is modelled as Business Role, ‘Place Order’ as a behavior (action) element is represented as Business Process and the passive ‘Order’ itself is modelled as Business Object.
The relationship between elements carry meaning in ArchiMate too. In our example, Assign relation is used to model the ‘Trader’ performing the ‘Place Order’ action. Contrary, the interaction between ‘Place Order’ and ‘Order’ is modelled using Access relation to illustrate that the the Business Process creates the Business Object.
To put all of this into practice, you can use the Archi modelling toolkit. It’s free, open-source and support multiple platforms.
In fact, I used it to illustrate the scenario above, but it can do much more. For example, I talk about modelling SABSA architecture using ArchiMate in my other blog.
Security architecture: how to
When building a house you would not consider starting the planning, and certainly not the build itself, without the guidance of an architect. Throughout this process you would use a number of experts such as plumbers, electricians and carpenters. If each individual expert was given a blank piece of paper to design and implement their aspect of the property with no collaboration with the other specialists and no architectural blueprint, then it’s likely the house would be difficult and costly to maintain, look unattractive and not be easy to live in. It’s highly probable that the installation of such aspects would not be in time with each other, therefore causing problems at a later stage when, for example, the plastering has been completed before the wiring is complete.
This analogy can be applied to security architecture, with many companies implementing different systems at different times with little consideration of how other experts will implement their ideas, often without realising they are doing it. This, like the house build, will impact on the overarching effectiveness of the security strategy and will in turn impact employees, clients and the success of the company.
For both of the above, an understanding of the baseline requirements, how these may change in the future and overall framework is essential for a successful project. Over time, building regulations and practices have evolved to help the house building process and we see the same in the security domain; with industry standards being developed and shared to help overcome some of these challenges.
The approach I use when helping clients with their security architecture is outlined below.
I begin by understanding the business, gathering requirements and analysing risks. Defining current and target states leads to assessing the gaps between them and developing the roadmap that aims to close these gaps.

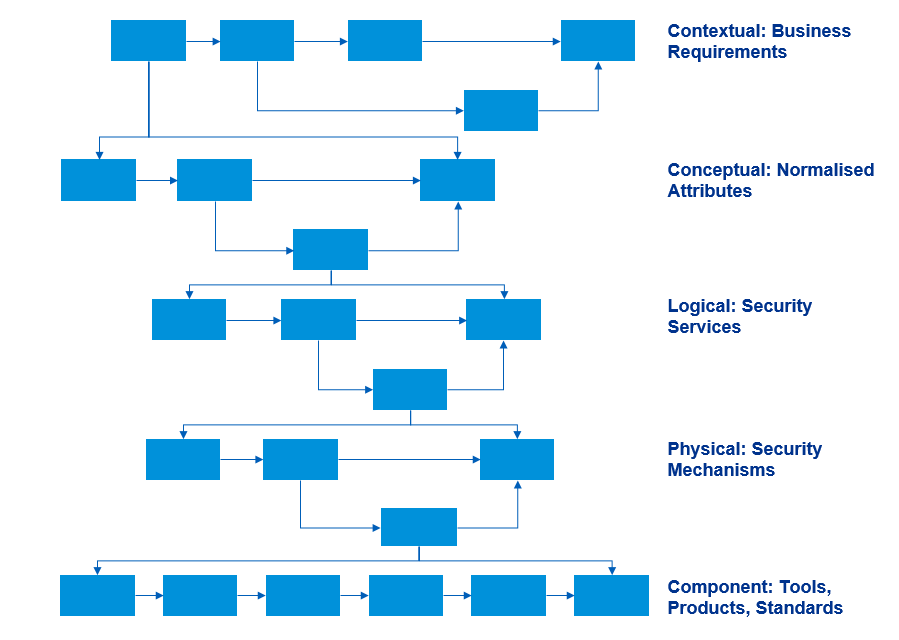

I prefer to start the security architecture development cycle from the top by defining security strategy and outlining how lower levels of the architecture support it, linking them to business objectives. But this approach is adjusted based on the specific needs.
SABSA architecture and design case study
Let’s talk about applying the SABSA framework to design an architecture that would solve a specific business problem. In this blog post I’ll be using a fictitious example of a public sector entity aiming to roll-out an accommodation booking service for tourists visiting the country.
To ensure that security meets the needs of the business we’re going to go through the layers of the SABSA architecture from top to bottom.
Start by reading your company’s business strategy, goals and values, have a look at the annual report. Getting the business level attributes from these documents should be straightforward. There’s no need to invent anything new – business stakeholders have already defined what’s important to them.
Every single word in these documents has been reviewed and changed potentially hundreds of times. Therefore, there’s usually a good level of buy-in on the vision. Simply use the same language for your business level attributes.
After analysing the strategy of my fictitious public sector client I’m going to settle for the following attributes: Stable, Respected, Trusted, Reputable, Sustainable, Competitive. Detailed definitions for these attributes are agreed with the business stakeholders.

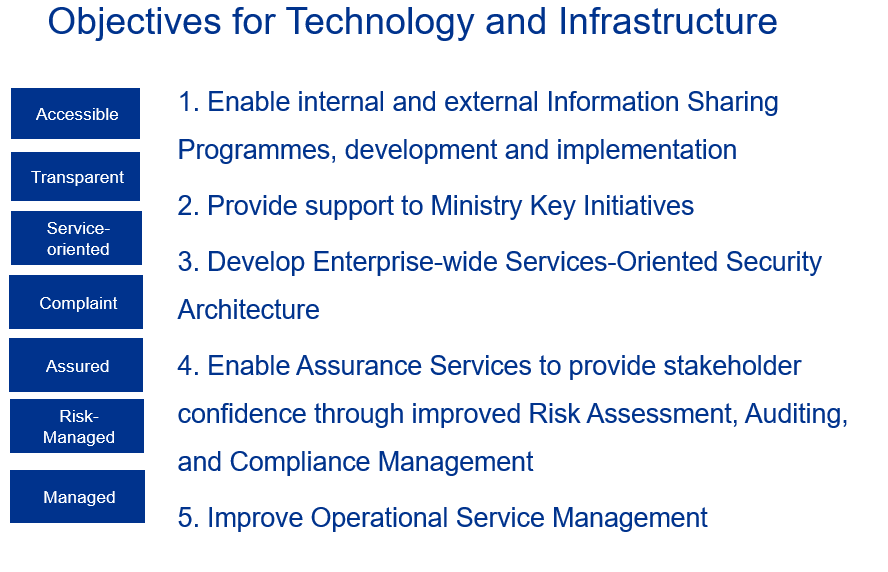

Next step is to link these to the broader objectives for technology. Your CIO or CTO might be able to assist with these. In my example, the Technology department has already done the hard job of translating high-level business requirements into a set of IT objectives. Your task is just distill these into attributes:
Now it’s up to you to define security attributes based on the Technology and Infrastructure attributes above. The examples might be attributes like Available, Confidential, Access-Controlled and so on.

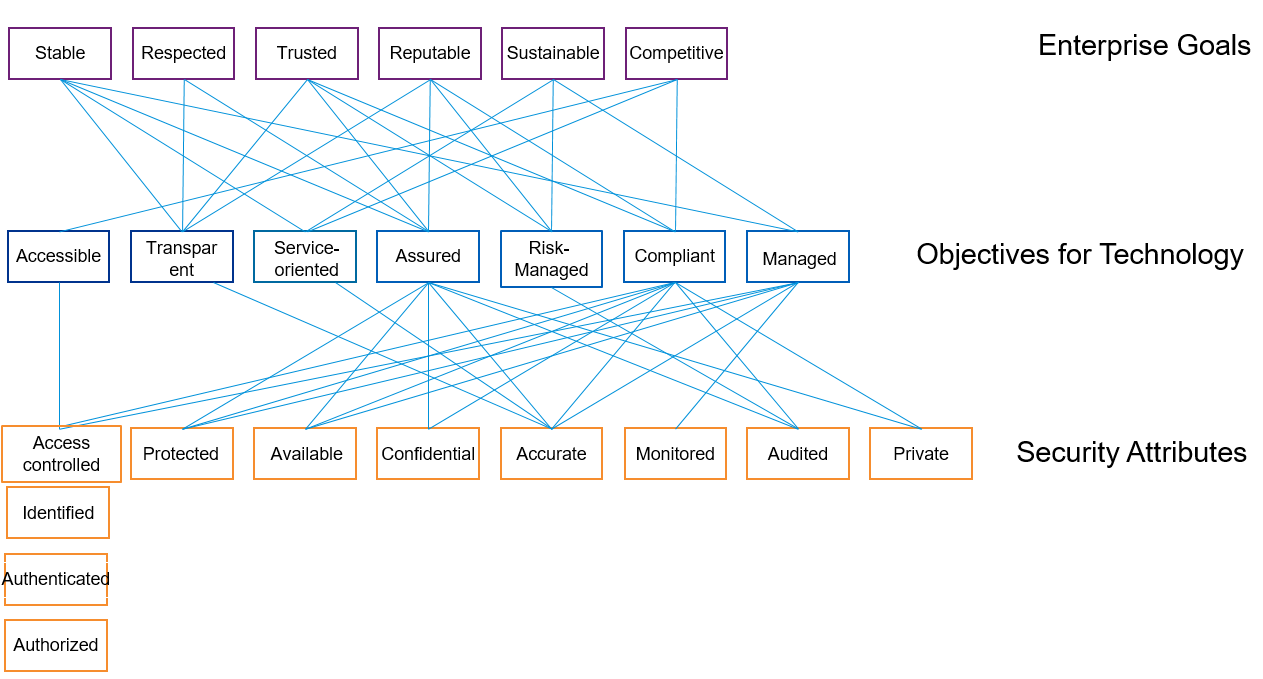

The next step would be to highlight or define relationships between attributes on each level:
These attributes show how security supports the business and allows for two-way traceability of requirements. It can be used for risk management, assurance and architecture projects.
Back to our case study. Let’s consider a specific example of developing a hotel booking application for a public sector client we’ve started out with. To simplify the scenario, we will limit the application functionality requirements to the following list:
|P001||Register Accommodation||Enable the registration of temporary accommodations available|
|P002||Update Availability||Enable accommodation managers to update availability status|
|P003||Search Availability||Allow international travellers to search and identify available accommodation|
|P004||Book Accommodation||Allow international travellers to book accommodation|
|P005||Link to other departments||Allow international travellers to link to other departments and agencies such as the immigration or security services (re-direct)|

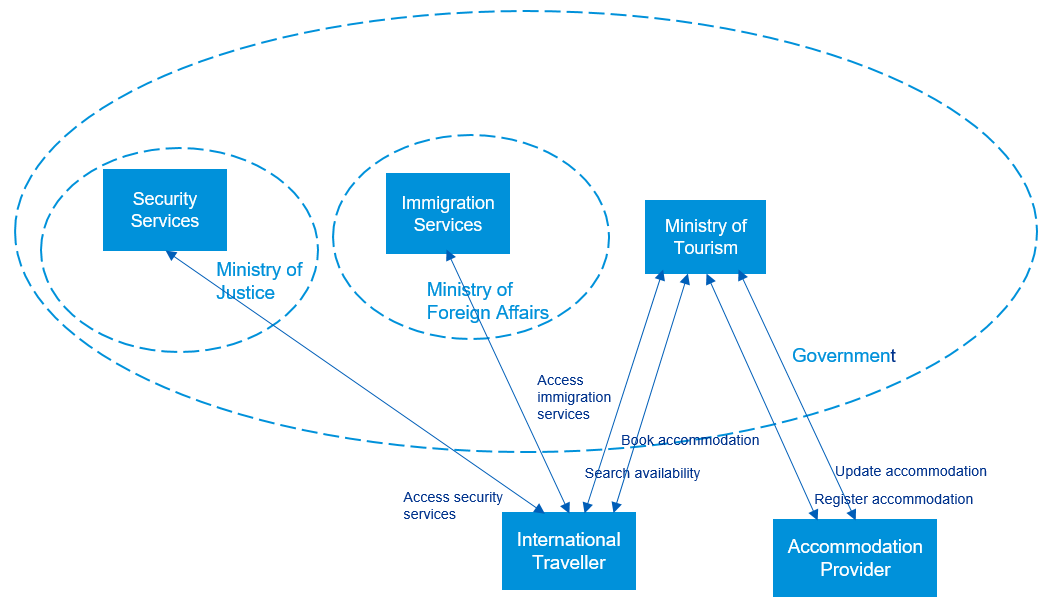

And here is how the process map would look like:
There are a number of stakeholders involved within the government serving international travellers’ requests. Tourists can access Immigration Services to get information on visa requirements and Security Services for safety advice. The application itself is owned by the Ministry of Tourism which acts as the “face” of this interaction and provides access to Tourist Board approved options. External accommodation (e.g. hotel chains) register and update their offers on the government’s website.
The infrastructure is outsourced to an external cloud service provider and there are mobile applications available, but these details are irrelevant for the current abstraction level.

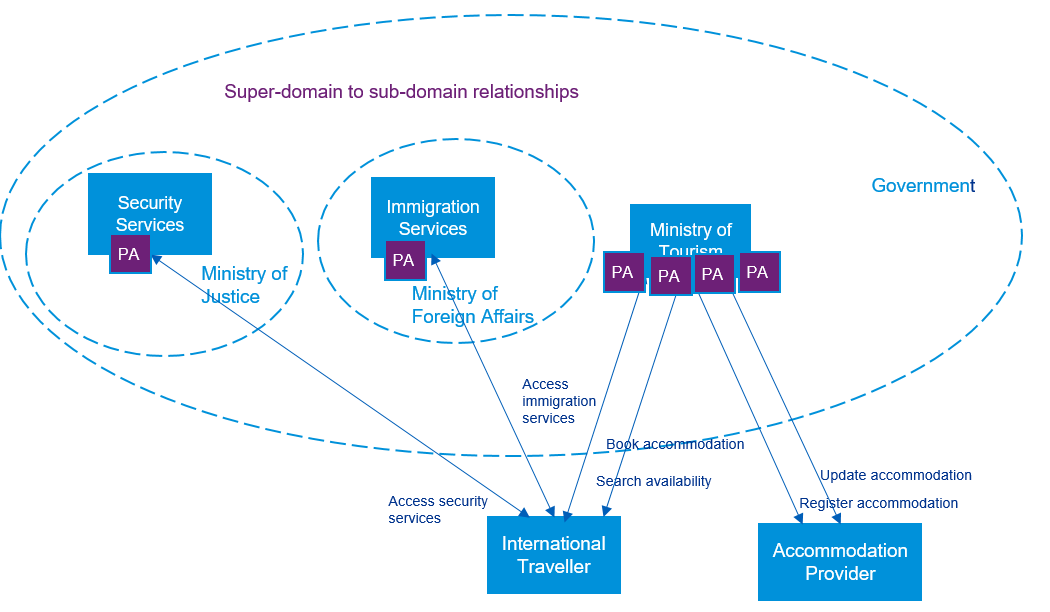

From the Trust Modelling perspective, the relationship will look like this:
Subdomain policy is derived from, and compliant with, super domain but has specialised local interpretation authorised by super domain authority. The government bodies act as Policy Authorities (PA) owning the overall risk of the interaction.

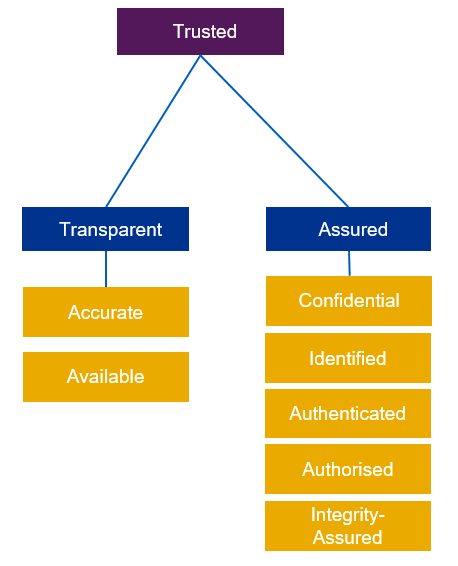

At this stage we might want to re-visit some of the attributes we defined previously to potentially narrow them down to only the ones applicable to the process flows in scope. We will focus on making sure the transactions are trusted:

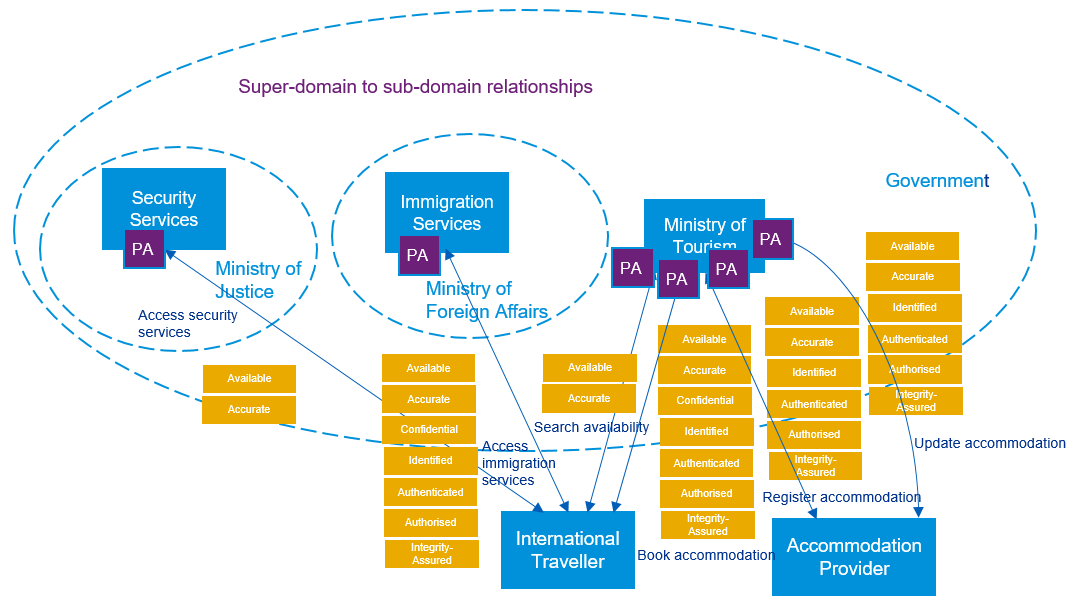

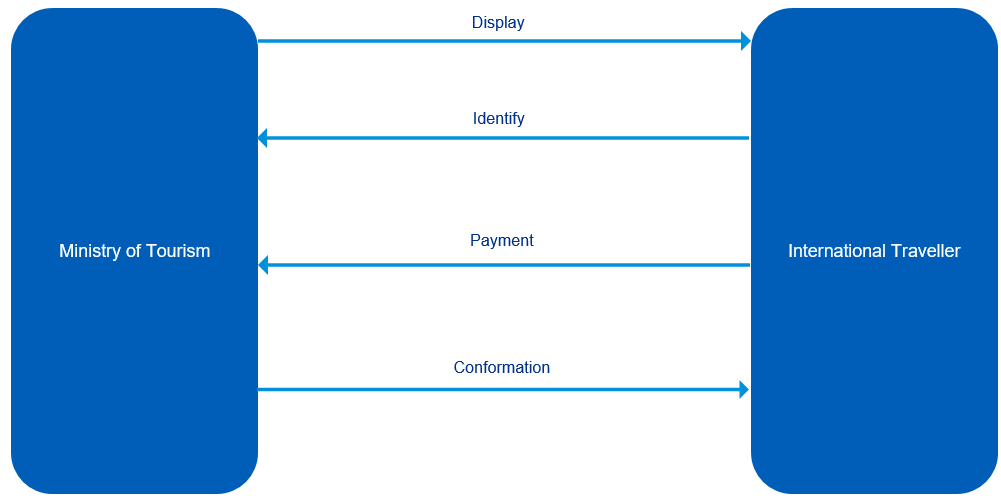

Let’s overlay applicable attributes over process flows to understand requirements for security:
Now it’s time to go down a level and step into more detailed Designer’s View. Remember requirement “P004 – Book Accommodation” I’ve mentioned above? Below is the information flow for this transaction. In most cases, someone else would’ve drawn these for you.

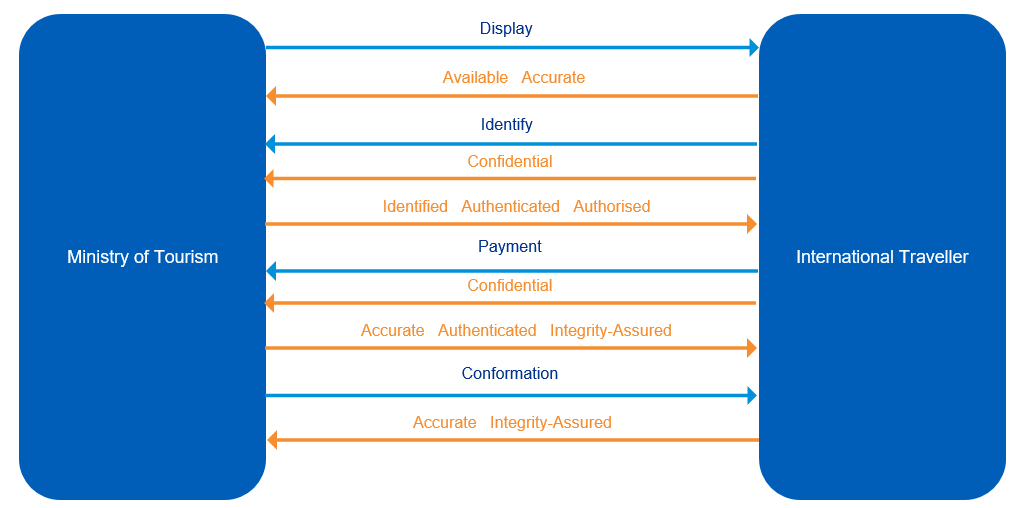

With security attributes applied (the direction of orange arrows define the expectation of a particular attribute being met):
These are the exact attributes we identified as relevant for this transaction on the business process map above. It’s ok if you uncover additional security attributes at this stage. If that’s the case, feel free to add them retrospectively to your business process map at the Conceptual Architecture level.

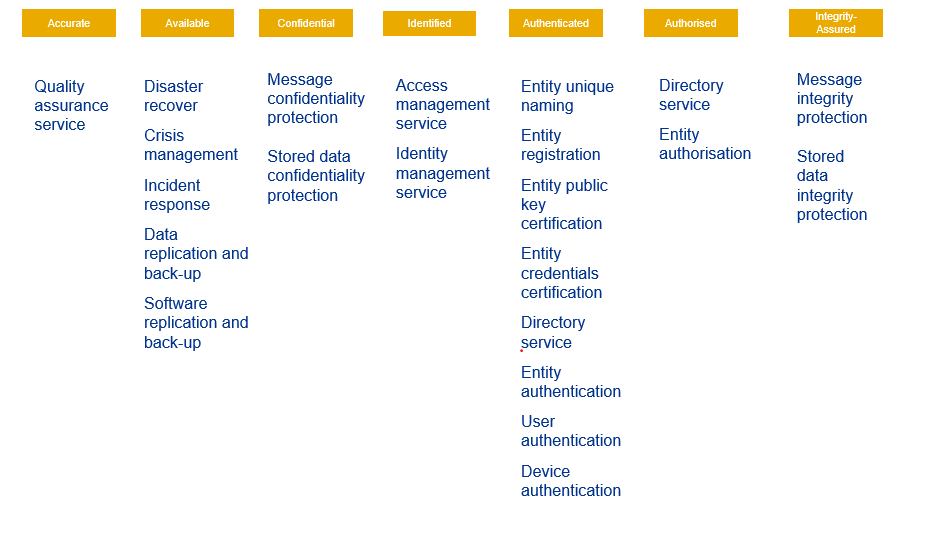

After the exercise above is completed for each interaction, it’s time to go down to the Physical Architecture level and define specific security services for each attribute for every transaction:
At the Component Architecture level, it’s important to define solution-specific mechanisms, components and activities for each security service above. Here is a simplified example for confidentiality and integrity protection for data at rest and in-transit:
|Service||Physical mechanism||Component brands, tools, products or technical standards||Service Management activities required to manage the solution through-life|
|Message confidentiality protection||Message encryption||IPSec VPN||Key management, Configuration Management, Change management|
|Stored data confidentiality protection||Data encryption||AES 256 Disk Encryption||Key management, Configuration Management, Change management|
|Message integrity protection||Checksum||SHA 256 Hash||Key management, Configuration Management, Change management|
|Stored data integrity protection||Checksum||SHA 256 Hash||Key management, Configuration Management, Change management|
As you can see, every specific security mechanism and component is now directly and traceable linked to business requirements. And that’s one of the ways you demonstrate the value of security using the SABSA framework.
Passed my AWS Certified Solutions Architect exam – here’s how you can too
I’ve recently passed my AWS Certified Solutions Architect – Associate exam. In this blog I would like to share some preparation tips that would help you ace it.
Not only practice makes perfect, some hands-on experience is also a prerequisite for the exam. So there is really no way around that! But what if you didn’t have a chance to use your skills on a real-world project yet? No problem! AWS gives you a opportunity to learn how their cloud components work through AWS Free Tier. For one year, you can use Amazon EC2 , Amazon S3, Amazon RDS, AWS IoT and many more free of charge,
You want more guidance? Qwiklabs developed a set of labs that specifically designed to help you prepare for this exam. For a small price, you can complete exercises without even requiring an AWS account or signing up for Free Tier.
I recommend studying AWS Whitepapers to broaden your technical understanding. If you are short on time, focus on these:
- Overview of Amazon Web Services
- Architecting for the Cloud: AWS Best Practices
- How AWS Pricing Works
- Compare AWS Support Plans
AWS developed a free self-paced Cloud Practitioner Essential course, to help you develop an overall understanding of the AWS Cloud. You will learn basic cloud concepts and AWS services, security, architecture, pricing, and support.
There is also a YouTube channel with free introductory videos and other noteworthy material.
Exam sample questions can help you check your knowledge and highlight areas requiring more study.
Remember, the best preparation for the exam is practical experience: AWS recommend 1+ years of hands-on experience with their technologies.
When you’re ready, go ahead and schedule an exam here.
Using SABSA for application security
Aligning OWASP Application Security Verification Standard and SABSA Architecture framework.
OWASP Application Security Verification Standard (Standard) is used at one of my clients to help develop and maintain secure applications. It has been used it as blueprint create a secure coding checklist specific to the organisation and applications used.
Below is an excerpt from the Standard related to the authentication verification requirements:
The Standard provides guidance on specific security requirements corresponding to the Physical layer of the SABSA architecture.
Third-party security assessments: applying SABSA
Organisations around the world are increasingly relying on third-party vendors to provide them with competitive advantage. Many companies in a race to optimise processes and reduce costs begin to outsource core functions. This leads to increased risk profile and new challenges of supplier oversight.
Dealing with third-parties has grown bigger than being just a procurement issue. Suppliers companies increasingly rely on, pose not only legal but also reputational risks that cannot be fully transferred. Security and privacy related incidents related to third-party providers are presenting new management challenges. Moreover, regulators are increasingly demanding the management of the third-party risk.
Suppliers, however, have their own challenges. Constant squeeze on costs from their clients reduces the profit margins making it increasingly difficult for vendors to prioritise security requirements implementation.
How do we make sure the suppliers we work with are trustworthy? How do we minimise the risk exposure from a potential incident? What level of assurance is required for a supplier?
These are the questions I’m going to answer in this blog.
Understanding business drivers and goals is essential for developing a third-party risk management approach. By analysing company’s corporate strategy I was able to derive multiple business attributes relevant to the shareholders. One of them stands out: Trusted. I’m going to disregard other attributes and focus on this one for the purposes of this case study. Not only it is important for the company to be trusted by its customers, but trustworthiness is also something I’m going to explore in this blog from the third-party relationship standpoint.
After a workshop with the CIO and IT managers in various business units, I’ve defined the following IT attributes supporting the main business attribute (Trusted): Transparent, Assured and Managed.
How does the security function support the wider IT objectives and corresponding attributes? After a number of workshops and analysing the security strategy document I’ve managed to create a number of security attributes. Below is a simplified example correlating to the business and IT attributes in scope:
Dealing with customers and managing relationships with them is one of the core activities of the company. As discussed above, being trusted by the customers is one of the main values of the organisation. IT department through the implementation of their technology strategy supported the business stakeholders in Sales and Marketing to outsource customer relationship management platform to a third party provider. A cloud-based solution has been chosen to fulfill this requirement.
A combination of attribute profiling, trust modelling and risk analysis is used to assess the degree of assurance required and compare third-party providers. Below is a recommended approach based on the attributes defined.
Security attributes mapping
Based on the internal security policy the following questionnaire has been developed to assess the supplier. Responses from the supplier have been omitted to preserve confidentiality. Below is a short excerpt from one of the sections of the questionnaire related to cloud services.
|Are terms of services and liabilities clearly defined in service agreements?||Governed|
|Are escrow arrangements in supplier contract agreement and cloud service agreements registered with procurement and documented in cloud service register.||Identified|
|Are physical security and environmental controls present in the data centre that contains company data?||Integrated|
|Are procedures for user authentication, authorization and access termination documented?||Access-Controlled|
|Has the Business Continuity Plan been reviewed and approved by the executive management?||Governed|
|How often is the Business Continuity Plans and Disaster Recovery Plans tested?||Available|
|Is there a specific Recovery Time Objective(s) (RTO) and Recovery Point Objective(s) (RPO)? If yes, specify the RTO and RPO for the company services.||Available|
|Are default settings customized to implement strong encryption for authentication and transmission?||Access-Controlled|
Attribute compliance is assessed based on the questionnaire answers, as every question is mapped to a specific attribute. Where a specific combination of an attribute corresponds to multiple questions, all answers are rated separately then an average rating for that attribute weight is calculated. Exceptions apply where certain specific questions are identified to have priority (higher level of impact on attribute compliance) over the other questions mapped to the same attribute. Expert judgement is applied to analyse such situations.
Attributes are evaluated with three main levels:
- High level of compliance with policy (Green),
- Medium level of compliance with policy (Amber),
- Low level of compliance with policy (Red)
